OPERATING PRINCIPLE

The tiny amount of compressed air escaping from the air curtain is ejected at high speed through a 0.5 mm opening created along the entire length of the device. This creates a rapidly moving “sheet” of air that draws in all the surrounding air towards the targeted area: the compressed air flow is amplified 25 times for RA, RA-2 and RAC, and 50 times for RA-2 DF.

KEY BENEFITS

NOVACOM air curtains make it possible to cool or clean large or cylindrical surfaces without creating excessive noise or causing excessive air consumption, as is the case with traditional open or drilled tube systems. And since the amount of compressed air required is low, noise levels are also reduced. Noise can be reduced by 50 dBA compared with other conventional systems.

• Reduction in your energy consumption.
• Air flow amplification and noise reduction.
• Fast return on investment.
• No risk of clogging.
• Complies with safety standards.

OPERATING DIAGRAM

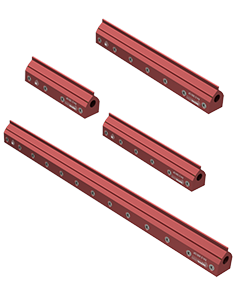

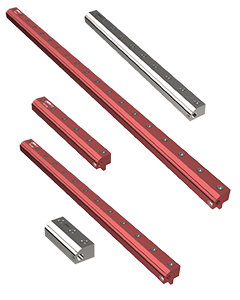

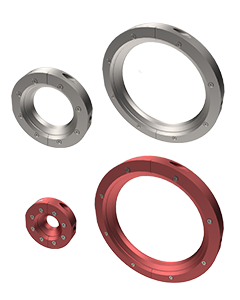

Operating diagram of single-flow air curtains series RAOperating diagram of double-flow air curtains series RA DF Operating diagram of circular air curtains series RAC

APPLICATIONS

Air curtains are ideal for heavy-duty product cooling or for cleaning large amounts of dust, chips, oil, water, etc., using only a small volume of compressed air.
