Product data sheet:
Rotary Blowing Nozzle G1/2" BSR Series
| Range | Blowing |
|---|---|
| Category | Blower nozzles |
| Kind | Rotating |
| Power Connection | Male G1/2" |
| Pressure (Bar) | 6 bar Max |
| Mass | 458.85 g |
| Noise level | 102 dB at 6 bar |
| Compressed air consumption | 1361 l/min at 6 bar |
Variant reference: BSR 12 240
- Matter: Anodized aluminum
Operating principle
Dynamic wide-coverage blowing for industrial cleaning, drying and cooling.
NOVACOM BSR rotary nozzles use compressed air to generate a continuous rotating movement. This principle makes it possible to automatically sweep a larger area than with a traditional fixed nozzle.
Thanks to their simple and robust design, they provide effective dynamic blowing for dust removal, part cleaning, water evacuation after washing, as well as localised cooling of industrial equipment and products.
The rotation speed varies according to the supply pressure, making it possible to adapt the blowing coverage to the needs of the application.

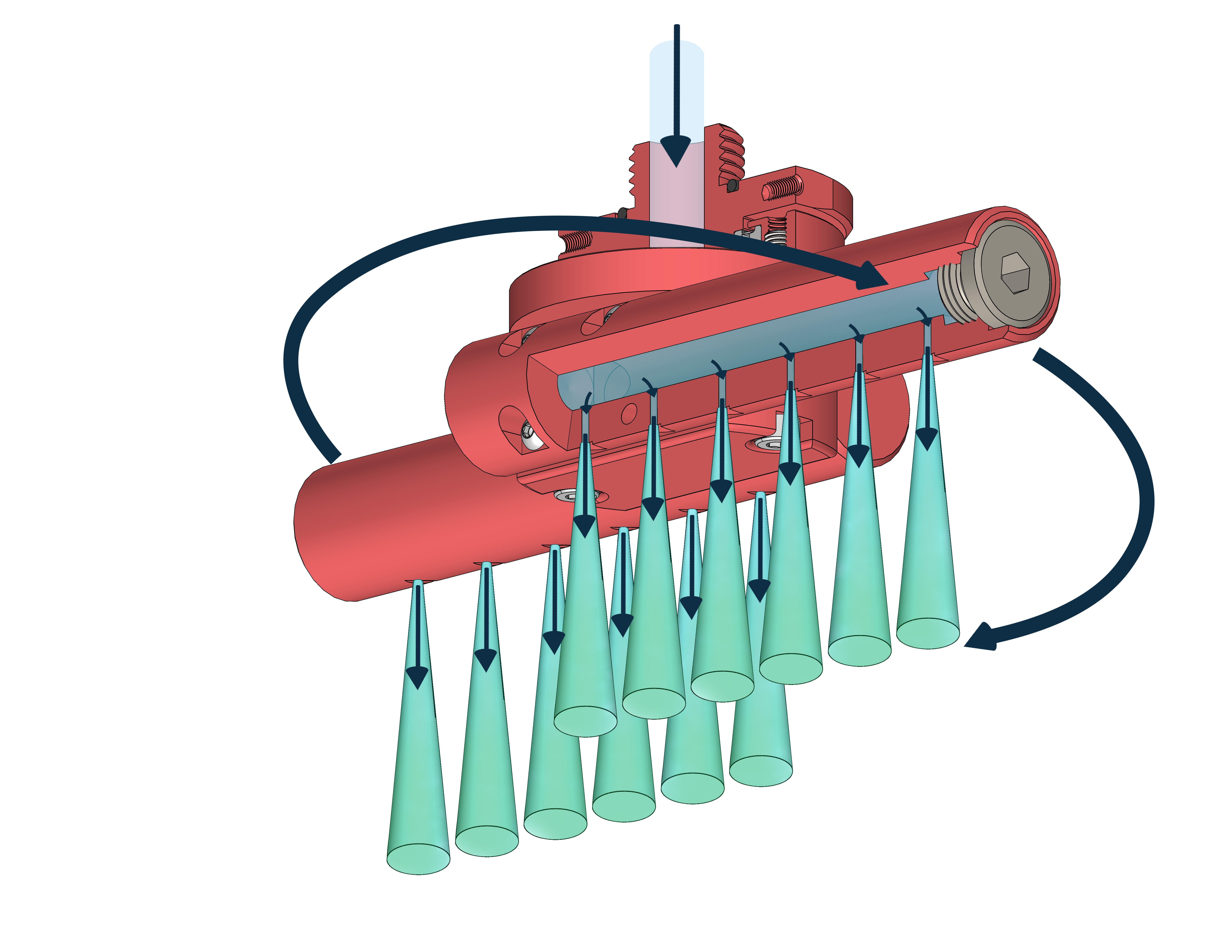

The BSR rotary nozzle is driven directly by compressed air. The airflow generates continuous rotation of the blowing head, creating a sweeping effect over the area to be treated.
This technology makes it possible to:
- increase the covered area.
- improve blowing efficiency.
- reduce untreated areas.
- achieve more uniform cleaning.
- improve the drying of complex parts.
The rotary movement is particularly suitable for dust removal, industrial cleaning and liquid evacuation operations.
Technical information
| BENEFITS OF USING THE BSR 12 240* AIR BLOWING NOZZLE (compared with an Ø12 int. hose) | Blowing increase (%) | Noise reduction (%) | ||
|---|---|---|---|---|
| up to +70% | up to -17% | |||
| PERFORMANCE OF THE BSR 12 240* AIR BLOWING NOZZLE | Pressure (bar) | Air consumption (l/min) | Sound level (dB) | |
| 2 | 470 | 92 | ||
| 6 | 1361 | 102 | ||
CHARACTERISTICS OF THE BSR 12 240 AIR BLOWING NOZZLE
• Connection: Male G1/2" • Weight: Aluminium: 458.85 g
• Maximum operating temperature: Aluminium: 150°C • Max. pressure: 6 bar
* NOTE: The measurements presented in this technical data sheet were carried out in a laboratory, in a strictly controlled environment. It is important to note that conditions in a real industrial environment may differ and that pressure instability from an industrial compressor may result in values different from those obtained in the laboratory. These data are provided for information purposes only. To achieve optimum performance from the rotary air blowing nozzle, we recommend using a compressed-air supply hose with a minimum internal diameter of 12 mm.
Industrial applications
- Food industry
- Automotive industry
- Pharmaceutical industry
- Cosmetics industry
- Packaging industry
- Mechanical industry
- Robotics and automation
Common uses
- Dust removal from parts and components
- Cleaning of industrial surfaces
- Water evacuation after washing
- Drying of products
- Cooling of parts
- Cooling of tooling
- Cleaning of conveyors
- Removal of chips and residues
Operating conditions
- Operating pressure: from 2 to 7 bar
- Maximum temperature: up to 150°C
- Recommended air: clean and dry compressed air
- Recommended filtration: filtration against water and oil
- Mounting position: horizontal or vertical
To ensure the best performance and optimal service life, it is recommended to use properly filtered compressed air.
Advantages of BSR rotary nozzles
- Extended blowing coverage:
the rotary movement makes it possible to treat a larger surface area than with a fixed nozzle, without any additional mechanical movement: (Blowing Ø 240 mm) - Reduced air consumption:
the sweeping effect improves blowing efficiency and can help reduce compressed-air consumption. - Continuous operation:
the robust design of the BSR nozzle allows continuous use in industrial environments. - Simple installation:
the nozzle can be installed horizontally or vertically depending on the constraints of the installation. - Reduced maintenance:
its simple mechanical design limits maintenance operations.
Construction
NOVACOM BSR rotary nozzles are made of aluminium with moving components in aluminium and brass.
- Aluminium body
- Moving parts in aluminium and brass
- Nitrile seals
- Stainless steel version available on request
- Protective guard available as an option
Safety of use
Like any rotating equipment, BSR nozzles require compliance with the applicable safety rules.
It is recommended to:
- wear suitable personal protective equipment;
- avoid any contact with rotating parts;
- use a protective guard when required by the application;
- follow the installation and operating instructions.
