OPERATING PRINCIPLE
Spring sets allow for horizontal or vertical handling of parts located at the same level or different levels. They cushion the grip and support continuous workloads.
APPLICATIONS
- Used on machines or equipment that cannot make adjustments to the grip
- Grasping of spherical, round or non-parallel objects to the suction cup's grip surface
- Depalletizing
GENERAL SELECTION CRITERIA
The choice of a spring assembly is made based on:
• The diameter of the suction cup
• The load to be lifted
• The stroke
• The diameter of the suction tube and the type of connection
• The shape of the part to be handled
Two functions:
• The spring function ensures that the gripping points are pressed on the same plane during multiple suction cup grips
• The anti-rotation function allows the piece to always be gripped in the same position.
ADVANTAGES
• Direct connection to the flue
• Flexibility of grip
• Height adjustments

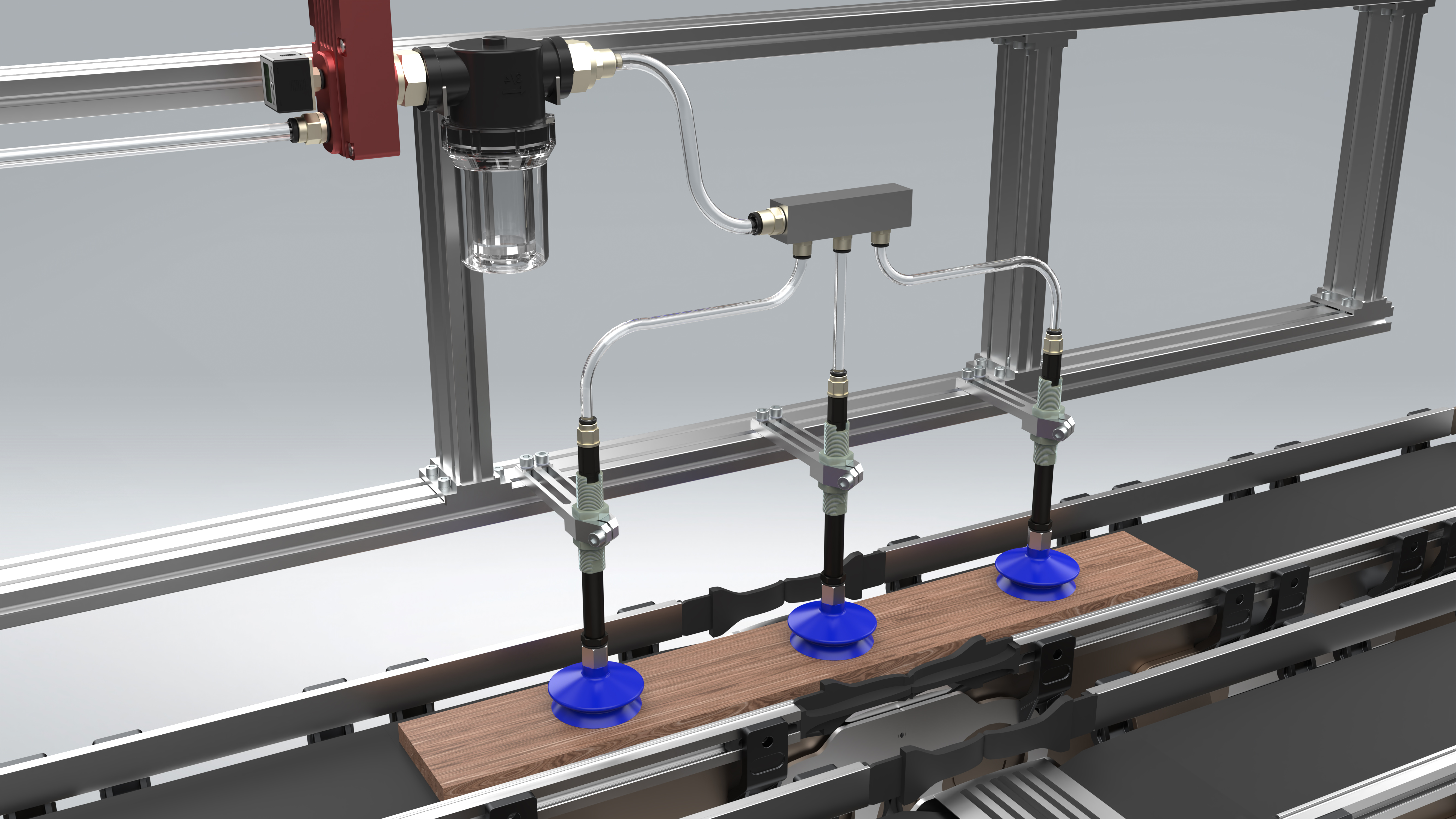

Here, the spring sets ER M14 AR C50 are mounted directly on suction cups 1 63PU D (Ø63mm) for gripping laminated tablet.
